Point outlets or monopoints are used to create a power source for the CONO canto SMART and SUB canto SMART in the form of a surface-mounted box.
Get an offer

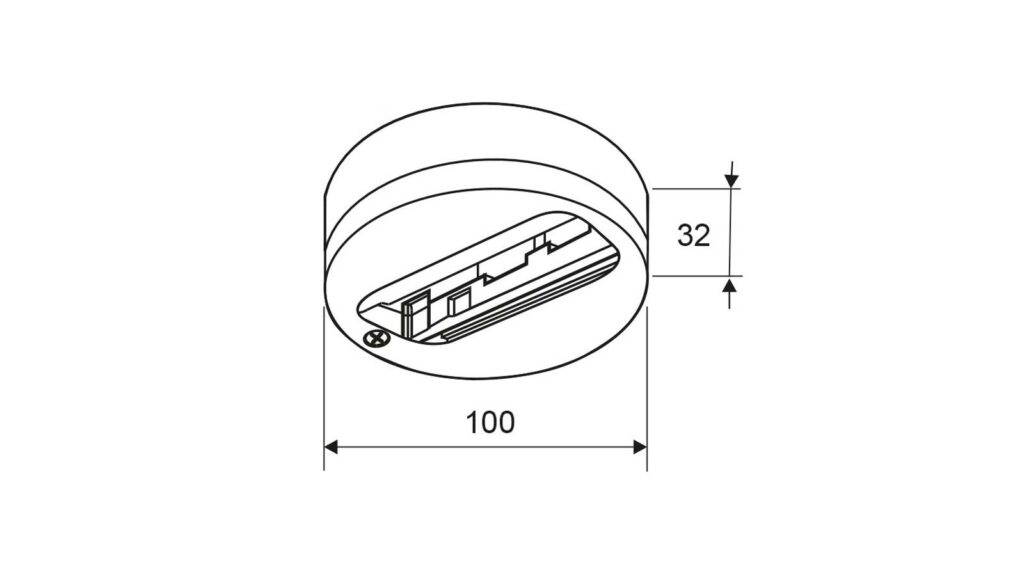

Monopoint
The Monopoint is a track replacement and is used to create a power source in the form of a surface-mounted or flush-mounted box. The connection integrated in the Monopoint corresponds to a standard 3-phase track, so the CONO canto SMART or SUB canto SMART models, for example, can be attached. Depending on requirements, this can be done as a surface-mounted installation, as in the case of low concrete ceilings, or with the additional installation frame as a flush-mounted installation in the case of plasterboard ceilings. When using the installation frame for the flush-mounted solution, the ceiling cut-out is 105 mm.
Technical Data
| Type | 3-phase surface-mounted box |
| Dimensions | Ø 105mm |
| Weight | 11g |
| Material | ABS plastic |
| Connection | Screw terminal |
| Nominal load | 10 A, 250 V |
| Tensile strength | Max. 50 N |
